Baudouin PBDN500 (kVA 500 )

Engine Technical Data

Engine Specifications
Engine Brand	Baudouin
Model	6M21G8D0/S
Low exhaust emissions	N/A
Engine cooling system	Liquid (water + 50% antifreeze)
Configuration and no. of cylinders	in line 6
Displacement	12.54 ltr
Aspiration	Turbocharged and Aftercooled
Speed governor	ECU
Prime gross power PRP @1500	kWM	450
Maximum gross power LTP ESP @1800	kWM	460
Oil capacity	ltr	34
Lube oil consumption PRP (max)	ltr/h	≤ 0.2 %
Total Coolant capacity	ltr	62
Fuel	Diesel
Specific fuel consumption 75%/100% PRP @1500 rpm	g/kWh	187.3/193.5
Specific fuel consumption 75%/100% PRP @1800 rpm	g/kWh	204.3/204.5
Starting system	Electric
Starting engine capability	kW	8.7
Electric circuit	V	24

Alternator Data

Alternator Specifications
Make	Stamford
Model	HCI544C
Voltage	220-480 V
Frequency	50-60 Hz
Power factor	0.8
Poles	4
Type	Brushless
Voltage regulation (with 4% Engine Governing)	±1%
Efficiency @ 75% load	93.3%
Insulation System	Class H
Protection	IP 23
Space heater	273 W

Control Panel

Controller

The DSE 4520 MKII is a compact Auto Mains (Utility) Failure Control Module designed to provide an outstanding range of features within a compact enclosure.

The module can be configured for use as an Auto Start Control Module

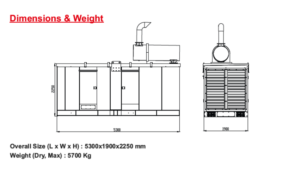

Sizes

NOTE: Drawing provided is for reference only and should not be used for planning installation. Please contact the Company or latest updated details. All the data is as per respective manufacturers’ specification. PERFECT reserves the right to change the design or specifications without notice and without any obligation or liability whatsoever.

Disclaimer: Due to continuous product improvements, specifications are subject to change without prior notice.
